Avionics accessories

GyroBump rotor flap warning device
For gyrocopters
Warns the pilot of impending rotor flap, rotor bump and possible rollover during the takeoff run
Senses rotor RPM and acceleration.
If below safe rpm and not accelerating it flashes red
If below safe rpm but accelerating it flashes green
If above safe rpm it shows constant green
Accessories
Geartooth sender
GyroBump User guide
GyroBump
$90.00 (inc)

WigWag landing/strobe light controller
Helps improve the 'be seen' part of VFR 'see and be seen' flight
Flashes dual LED landing or strobe lights in selectable cadences.
Constant on mode for ground operations.
WigWag alternate flash mode for dual landing lights.
Strobe flash mode for wingtip or fin/fuselage strobe lights.
Will drive most LED based lights up to 5A/60W.
Accessories
WigWag User guide
WigWag demo video
WigWag
$70.00 (inc)


RDAC-VD 4 TC channel engine data monitor
For 2/4 stroke engines requiring only 4 EGT/CHT channels
For use in XTREME-EMS, XTREME-EFIS systems
Communicates via RDAC OPTO bus
4 thermocouple inputs (EGT/CHT)
OIL.T input from automotive NTC or MGL precision temperature sender
OIL.P input from automotive resistor, 0-5V or 4-20mA sender
FUEL.F input from flow sender or injector drive
2x FUEL.L input from automotive resistor or 0-5V senders
RPM input from lighting coil, ignition primary or RPM sender
2x AUX inputs suitable for temperature or pressure senders
Accessories
EGT senders
CHT senders
Temperature senders
Pressure senders
Fuel flow senders
Fuel level senders
RPM senders
Current senders

RDAC-VD Installation Manual
RDAC-VD
$170.00 (inc)


RDAC-XG 8 TC channel engine data monitor
For 2/4 stroke engines requiring 4-8 EGT/CHT channels
For use in XTREME-EMS, XTREME-EFIS and iEFIS systems
Communicates via MGL CAN bus
8 thermocouple inputs (EGT/CHT)
OIL.T input from automotive NTC or MGL precision temperature sender
OIL.P input from automotive resistor, 0-5V or 4-20mA sender
FUEL.F input from flow sender or injector drive
FUEL.P input from automotive resistor, 0-5V or 4-20mA sender
2x FUEL.L input from automotive resistor or 0-5V senders
RPM input from lighting coil, ignition primary or RPM sender
2x AUX inputs suitable for temperature or pressure senders
NO MAP input
Accessories
EGT senders
CHT senders
Temperature senders
Pressure senders
Fuel flow senders
Fuel level senders
RPM senders
Current senders

RDAC-XG Installation Manual
RDAC-VD
$230.00 (inc)


RDAC-XF 12 TC channel engine data monitor w/wo MAP
For 2/4 stroke engines requiring more than 4 EGT/CHT channels
For use in XTREME-EMS, XTREME-EFIS and iEFIS systems
Communicates via CAN bus
12 thermocouple inputs (EGT/CHT)
OIL.T input from automotive NTC or MGL precision temperature sender
OIL.P input from automotive resistor, 0-5V or 4-20mA sender
H2O.T input from automotive NTC or MGL precision temperature sender
CURRENT input from magnetic current sensor
2x FUEL.L input from automotive resistor or 0-5V senders
2x AUX inputs suitable for temperature or pressure senders
2x RPM inputs from lighting coil, ignition primary or RPM sender
2x FUEL.F input from flow sender or injector drive
RDAC-XF MAP version includes MAP pressure sender port
Accessories
EGT senders
CHT senders
Temperature senders
Pressure senders
Fuel flow senders
Fuel level senders
RPM senders
Current senders

RDAC-XF Installation Manual
RDAC-XF
$360(inc)

RDAC-XF MAP
$430(inc)


RDAC-CAN Rotax 912iS engine data monitor
For Rotax 912 iS engines
For use in XTREME-EMS, XTREME-EFIS and iEFIS systems
Collects engine data from 912iS ECU CAN bus
Communicates to EFIS via EFIS CAN bus
CURRENT input from magnetic current sensor
2x FUEL.L input from automotive resistor or 0-3V senders
FUEL.P input from 0-5V sender
Accessories
Pressure senders
Fuel level senders
Current senders

RDAC-CAN Installation Manual
RDAC-CAN
$200.00 (inc)


SP-6 magnetometer (compass) sender
3 axis magnetic field sensor (magnetoresistive type) and a 3 axis accelerometer (MEMS).
Advanced in-flight calibration algorithms for correction of hard and soft iron magnetic errors.
Dramatically simplifies electronic compass installation
Eliminates the need for ground based compass swings and calibrations.
3 axis magnetic field sensor (magnetoresistive type) and a 3 axis accelerometer (MEMS).
SP-6 Installation Manual
SP-6
$280(inc)


SP-7 AHRS (attitude) sender
MEMS based 3 axis strapdown gyroscope and 3 axis accelerometer.
Provides bank and pitch angle, rate of turn and G forces or acceleration to the host system.
Measures of angular rates up to 250 degrees per second on any axis
Measures G-forces up to 6 G.
SP-7 AHRS
$605(inc)

EGT senders
For use with RDACs and Infinity/Velocity gauges
K-type thermocouples
High quality strain relief and braided shield for high temperature/vibration areas
EGT1 M8 screw-in type
EGT2 16mm probe clamp type (suitable for Rotax 2 and 4 stroke engines)
EGT3 25mm probe clamp type (suitable for Lycoming 4 stroke engines)
Accessories
K thermocouple extension wire
EGT1 screw type sender
$60(inc)

EGT2 clamp type sender
$65(inc)

EGT3 clamp type sender
$70(inc)


CHT senders
For use with RDACs and Infinity/Velocity gauges
K-type thermocouples
High quality strain relief and braided shield for high temperature/vibration areas
CHT1 bayonet type 3/8"-24 thread
CHT10/12/14/16 10/12/14/16mm sparkplug ring type
Accessories
K thermocouple extension wire
CHT1 bayonet type sender
70.00 (inc)

CHT10 10mm ring type sender
$45(inc)

CHT12 12mm ring type sender
$45(inc)

CHT14 14mm ring type sender
$45(inc)

CHT16 16mm ring type sender
$45.00 (inc)

KEXT K-type thermocouple extension wire
Use to extend thermocouple leads to RDAC or gauges
Eliminates cold junction errors when using copper wire
K extension wire
$12/m (inc)




Precision temperature senders
For use with all MGL gauges//RDACs/EFISs
Uses a precision LM335 silicon temperature sender (+/- 1 degree C)
Select probe type "Precision temperature probe" or "LM335 temperature sender"
TEMP naked version suitable for cabin, carb and other general temperature measurement.
Or fit into a custom sender housing for special applications.
PTEMP in standard automotive/Rotax style housing for oil, water temperature measurement.
OAT packaged in a machined aluminum housing with threaded mounting base and nylon fasteners (nut,washer).
TEMP naked temperature sender
$15(inc)

PTEMP oil/water temperature sender
$50(inc)

OAT outside air temperature sender
$40(inc)

FLOW turbine fuel flow sender
For use with RDACs and Infinity/Velocity gauges
Turbine fuel flow sender
Compatible with all fuel types
Choice of jets for flows from 3 to 600 l/hr
Typical use is 2mm jet (6-90 l/hr) at 7000 pulses/l
Fits 8 and 12mm hose
Sender manual Turbine flow sender
$300.00 (inc)

FFDIFF Differential fuel flow adapter
For aircraft with fuel return systems and RDACs with only one fuel flow input.
Accepts inputs from 2 flow senders and outputs the SUM or the DIFFERENCE
FFDIFF manual Differential fuel flow adapter
$100.00 (inc)

MAG current sender
Measures DC charge/discharge currents from less than 4A to 120A
Connects to an EFIS system via spare RDAC inputs
(eg CHT1, CHT2, OIL.P, OIL.T or CURRENT input on RDAC-XF).
Clamped to wire- no need to break into the wire.
Sender manual Magnetic current sender
$49.00 (inc)

5 & 50A current shunts
Used with BAT-1 battery monitor
50A version is supplied with the BAT-1 and measures 5-50A
Use 5A version for more accurate low current use (0.5-5A)
5A current shunt
$20.00 (inc)
50A current shunt
$20.00 (inc)

5 & 10 Bar pressure senders
Used with EFIS RDACs and Infintity/Velocity gauges
0-200 ohm resistive sender
5B (70psi) sender for fuel pressure
10B (150psi) sender for oil pressure
5B FUEL.P sender
$140.00 (inc)
10B OIL.P sender
$140.00 (inc)

2 & 10 Bar 0-5V precision pressure senders
Used with EFIS RDACs and Infintity/Velocity gauges
0-5 volts output precision pressure senders
Requires 12VDC supply
2B (35psi) sender for fuel pressure
10B (150psi) sender for oil pressure
2B 0-5V FUEL.P sender
$275.00 (inc)
10B 0-5V OIL.P sender
$355.00 (inc)

MGL autopilot servo
Used with the Xtreme-EFIS and iEFIS systems.
Stepper motor based system providing a torque of up to 4.8Nm.
No restriction on angle and range of the output arm.
Measures external force acting on the output shaft for indication or automatic trim systems.
Multiple threaded mounting points on the face and sides of the servo for ease of installation.
Accessories
Capstan kit
Servo rod kit

Servo manual
MGL servo
1485.00 (inc)

MGL servo capstan kit
Precision machined capstan kit converts an MGL Servo to a capstan servo.
The capstan kit uses flexible 1.5mm steel cable (not included) around a drum.
This cable is typically fixed to the control cable using clamping blocks (supplied).
Accessories
Not required

Capstan instal guide
MGL capstan kit
$200.00 (inc)

MGL servo rod kit
Constructs a servo linkage using left and right hand thread rod end bearings
Contents:
1x Al tube 30cm
1x Rod end bearing RH with fitting and nut
1x Rod end bearing LH with fitting and nut
4x rivets
Accessories
Not required
MGL servo rod kit
$30.00 (inc)

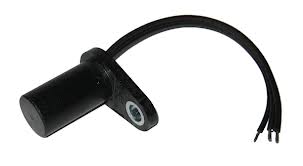

Geartooth RPM sender
Connects to EFIS RDACs and gauges
Senses metal teeth/tabs in proximity (3mm) of sender tip
Ideal for gyro pre-rotator or engine crownwheels
Rugged sealed case
Adapts to magnetic conditions
Accessories
Not required

GTS geartooth sender
$145.00 (inc)

Optical RPM sender
Connects to EFIS RDACs and gauges
Detects reflective surfaces in proximity (3mm) of sender tip
Ideal for rotor shafts
2m cable
Accessories
Not required

OPTO optical RPM sender
$25.00 (inc)
